SIC tube heat exchanger

SIC tubular heat exchangers use heat-resistant tubes made of corrosion-resistant silicon carbide that are ideal for heating, cooling and condensing chemically corrosive process media. Typical applications include: bromine, sulfuric acid, hydrofluoric acid
ONLINE

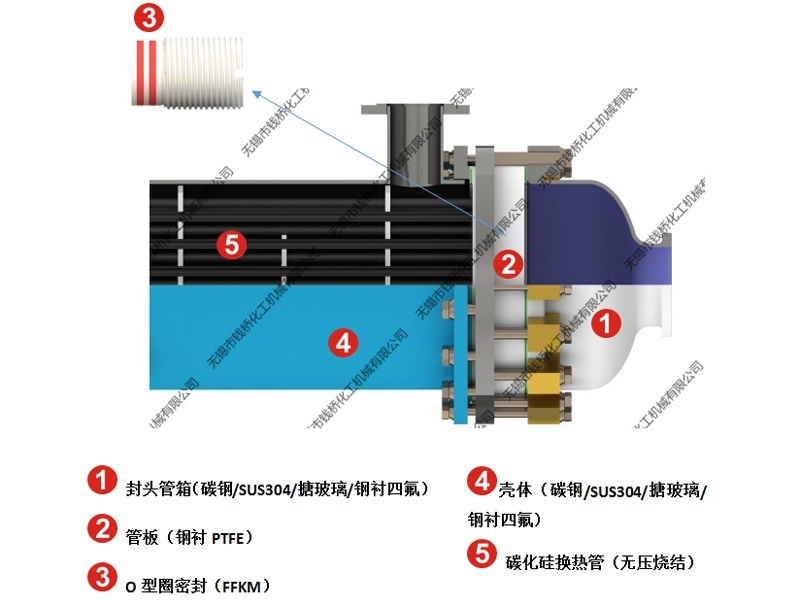

SIC tube heat exchanger, consisting of corrosion-resistant tube sheets and silicon carbide tubes, is the best solution for the most demanding corrosive conditions.

SIC tubular heat exchangers use heat-resistant tubes made of corrosion-resistant silicon carbide that are ideal for heating, cooling and condensing chemically corrosive process media. Typical applications include: bromine, sulfuric acid, hydrofluoric acid, nitric acid, hydrochloric acid and other acids; bases; halogenated compounds; salt solutions and organic compounds.

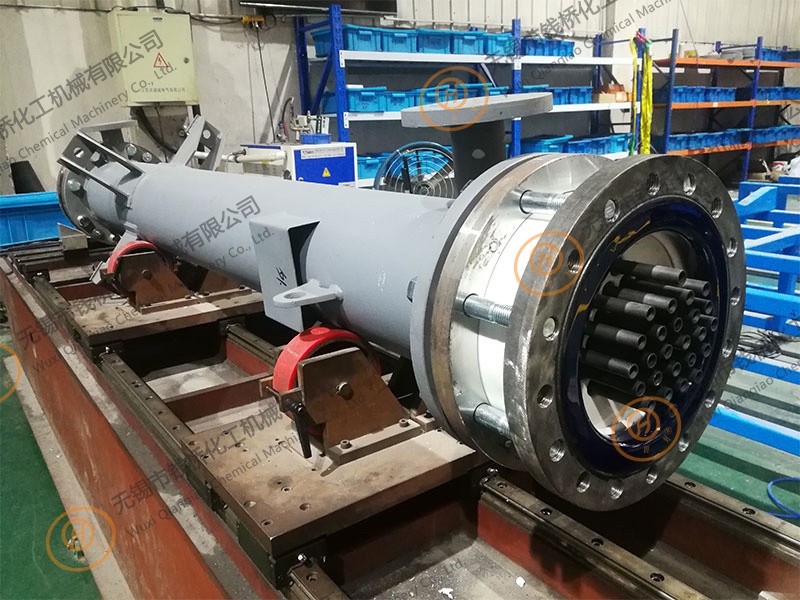

Imported SIC heat exchange

● Test each heat exchange tube under pressure of 185 Bar before installation
● Heat exchanger housing diameter range from DN100 to DN600
● The standard length of the heat exchange tube is 1000 to 4000mm
● Heat exchange area is 0.32 to 58 square
● Heat exchange tube diameter is 26mm
● Horizontal or vertical installation
● Applicable temperature range -19℃ to 250℃
● Applicable pressure range -0.1Mpa to 0.6Mpa
● Comply with CE, ATEX, FDA

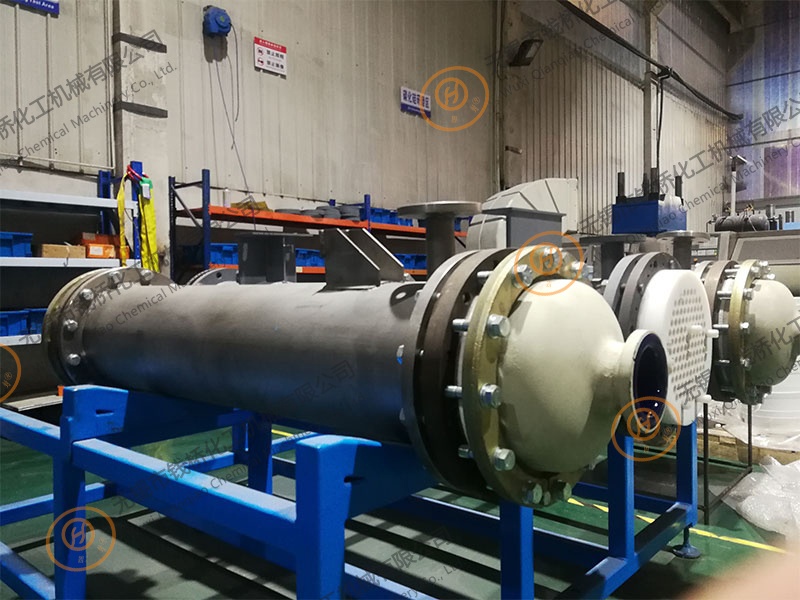

Imported SIC heat exchange

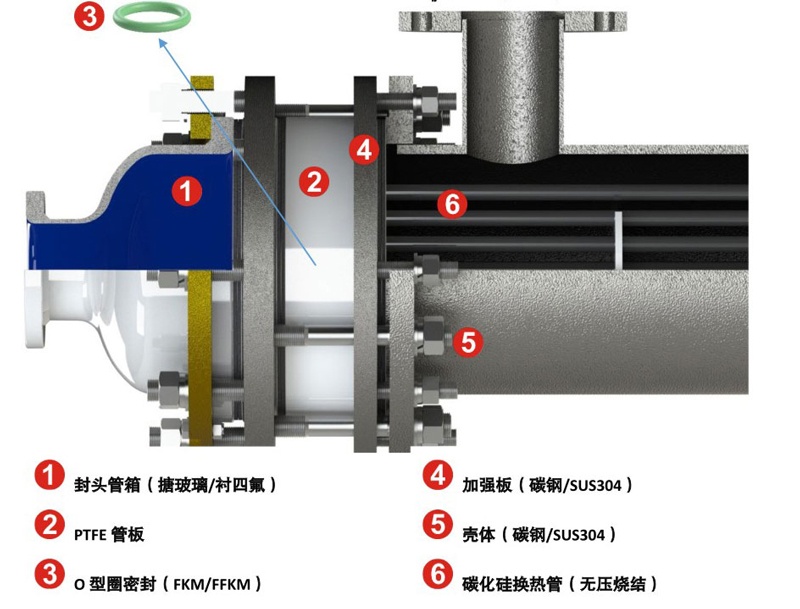

Super type [steel lined PTFE] SIC heat exchange

● Test each heat exchange tube under pressure of 185 Bar before installation
● Heat exchanger housing diameter range from DN100 to DN1000
● The standard length of the heat exchange tube is 1000 to 4000mm
● Heat exchange area is 1 to 200 square
● Heat exchange tube diameter is 14mm and 19mm
● Horizontal or vertical installation
● Applicable temperature range -19℃ to 230℃
● Applicable pressure range -0.1Mpa to 1.0Mpa
● Comply with CE, ATEX, FDA
● Combined with the internal test data and the application of a number of practical cases, it is proved that this type is the most reliable, most stable, the best temperature resistance, the best pressure bearing and the most widely applicable structure in the existing structure of silicon carbide tube heat exchanger.

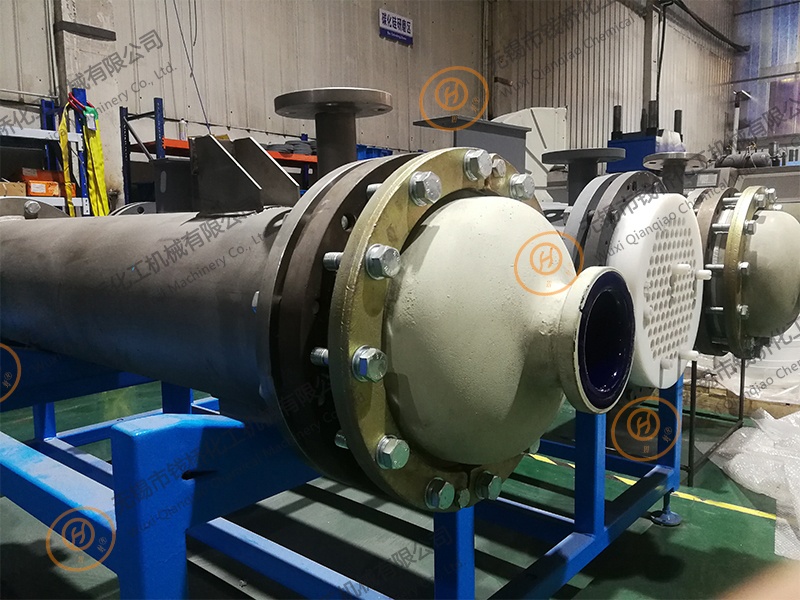

Super type [steel lined PTFE] SIC heat exchange

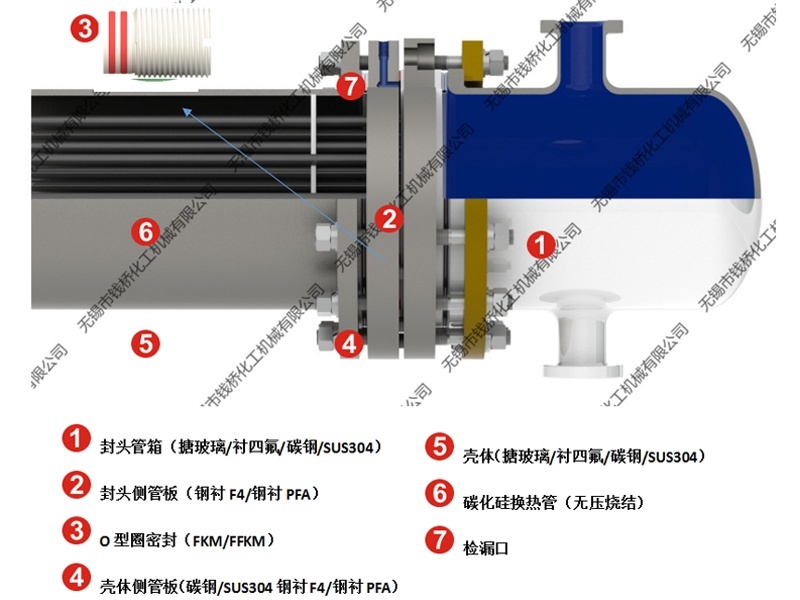

Reinforced double tube plate [steel lined F4 or steel lined PFA] SIC heat exchange

● Test each heat exchange tube under pressure of 185 Bar before installation
● Heat exchanger housing diameter range from DN100 to DN600
● The standard length of the heat exchange tube is 1000 to 3000mm
● Heat exchange area is 1 to 40 square
● Heat exchange tube diameter is 14mm and 19mm
● Horizontal or vertical installation
● steel lining F4 Applicable temperature range -19℃ to 120℃
● steel lining PFA Applicable temperature range -19℃ to 120℃
● Applicable pressure range -0.1Mpa to 0.6Mpa
● Comply with CE, ATEX, FDA
● Double tubeSheet deSign
It is possible to separate the process fluid and the service fluid with a separation chamber, so that in case of o-ring leaking no mix will occur between the two fluids.

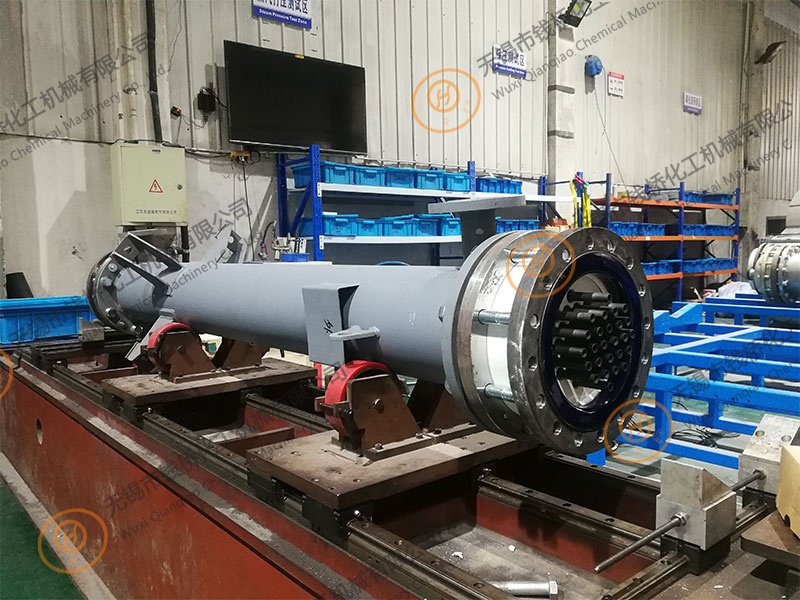

Reinforced double tube plate [steel lined F4 or steel lined PFA] SIC heat exchange
Reinforced type [steel lined F4 or steel lined PFA] SIC heat exchange

● Test each heat exchange tube under pressure of 185 Bar before installation
● Heat exchanger housing diameter range from DN100 to DN600
● The standard length of the heat exchange tube is 1000 to 3000mm
● Heat exchange area is 1 to 40 square
● Heat exchange tube diameter is 14mm and 19mm
● Horizontal or vertical installation
● steel lining F4 Applicable temperature range -19℃ to 120℃
● steel lining PFA Applicable temperature range -19℃ to 120℃
● Applicable pressure range -0.1Mpa to 0.6Mpa
● Comply with CE, ATEX, FDA

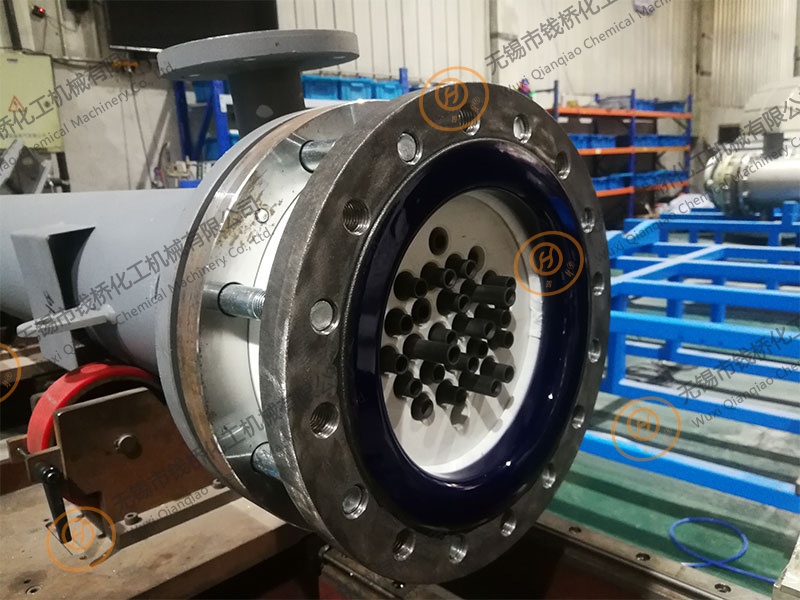

Reinforced type [steel lined F4 or steel lined PFA] SIC heat exchange
Double tube SIC heat exchange

● Test each heat exchange tube under pressure of 185 Bar before installation
● Heat exchanger housing diameter range from DN100 to DN600
● The standard length of the heat exchange tube is 1000 to 3000mm
● Heat exchange area is 1 to 60 square
● Heat exchange tube diameter is 14mm and 19mm
● Horizontal or vertical installation
● Applicable temperature range -19℃ to 100℃
● Applicable pressure range -0.1Mpa to 0.6Mpa
● Comply with CE, ATEX, FDA
● Double tubeSheet deSign
It is possible to separate the process fluid and the service fluid with a separation chamber, so that in case of o-ring leaking no mix will occur between the two fluids.

Double tube SIC heat exchange
Ordinary SIC heat exchange

● Test each heat exchange tube under pressure of 185 Bar before installation
● Heat exchanger housing diameter range from DN100 to DN600
● The standard length of the heat exchange tube is 1000 to 3000mm
● Heat exchange area is 1 to 60 square
● Heat exchange tube diameter is 14mm and 19mm
● Horizontal or vertical installation
● Applicable temperature range -19℃ to 100℃
● Applicable pressure range -0.1Mpa to 0.3Mpa
● Comply with CE, ATEX, FDA

Ordinary SIC heat exchange

Red column must be filled Click to download

Design requests of SIC

Device number





Jacket

in side of heat exchanger

Fluid name / component



Total flow

kg/h

Gas flow

kg/h

Liquid flow

kg/h

Non condensable material flow

kg/h

Tempreture ( In / Out)

°C

Freezing point / Boiling point

°C

Density

kg/m3

Viscosity

cP

Gas molecular weigh

g/mol

Molecular weight of non condensates

g/mol

Specific heat

cal/g/k

Thermal conductivity

kcal/m/K/h

latent heat

kcal/kg

Inlet pressure (absolute pressure)

Mpa

Current Speed

m/s

Pressure drop

bar

Fouling coefficient

kcal/h/m2/°C

Heat exchange capacity

kcal/h

Heat transfer coefficient(clean / dirty / service side)

kcal/h/m2/°C

Corrected logarithmic mean temperature difference

°C

Heat exchange area (required / provided)

m2

Equipment selection data

Design temperature

°C

Design pressure

barg

Test pressure

barg

Process number



Inlet pipe diameter

mm

Outlet pipe diameter

mm

Material



Weight (empty / full water)

kg

Installation method



Thermal conductivity comparison table

碳化硅腐蝕性能表

  測試環境 Test Environment
  試劑濃度 Conc.Reagent

腐蝕量
Corrosive Weight Loss

mg/cm2yr

 (Wt%)

溫度 Temp
(℃)

無壓燒結碳化硅**
(No Free SiC)**

反應燒結碳化硅
(12% SiC)

  98% H2SO4

100

1.8

55

  50% NaOH

100

2.6

>1000

  53% HF

25

<0.2

7.9

  85% H3PO4

100

<0.2

8.8

  70% HNO3

100

<0.2

0.5

  45% KOH

100

<0.2

>1000

  25% HCI

70

<0.2

0.9

  10% HF plus 57% HNO3

25

<0.2

>1000

無錫市錢橋化工機械有限公司所生產設備均使用無壓燒結碳化硅**
The heat exchanger produced by Wuxi Qianqiao Chemical Machinery Co., Ltd. is made of pressureless sinte#d63031 silicon carbide.(No Free SiC)**









SIC tubular heat exchangers use heat-resistant tubes made of corrosion-resistant silicon carbide that are ideal for heating, cooling and condensing chemically corrosive process media. Typical applications include: bromine, sulfuric acid, hydrofluoric acid, nitric acid, hydrochloric acid and other acids; bases; halogenated compounds; salt solutions and organic compounds.
